Description


TK-3701DE Brochure


Product Description

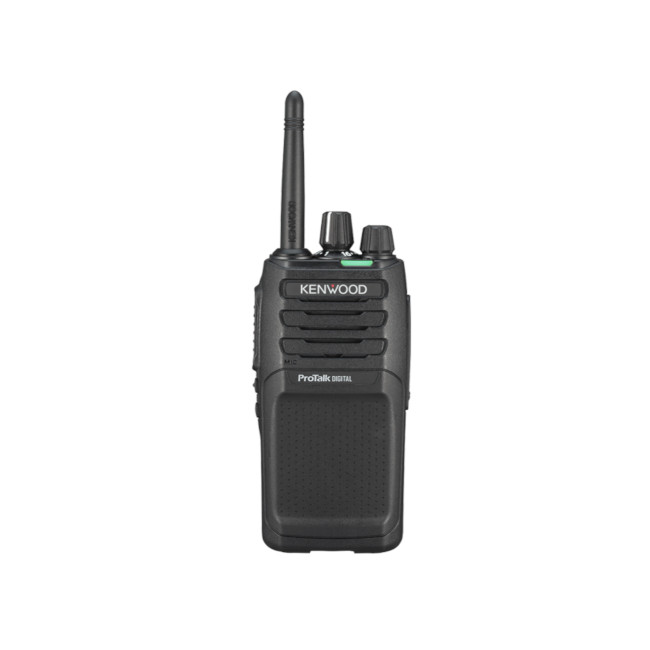

The ProTalk TK-3701D is a license-free UHF digital transceiver featuring both digital dPMR446 and analogue PMR446 communications. The ready-to-use package comes with a transceiver, rechargeable battery, battery charger, mains adapter and belt clip. The TK-3701D is perfect for professional applications requiring a license-free, stylish, compact, light and easy to use digital two-way radio.

This radio allows Digital and Analogue combined operation, which means it can handle both digital and analogue signals in a zone. This gives you the freedom to migrate at your own pace — whether you are ready to go fully digital, or use with the current analogue transceivers with a view to gradually switching to digital.

The TK-3701D is a licence-free dPMR446 and PMR446 UHF digital transceiver. The ready-to-use package comes with a transceiver, rechargeable battery, battery charger, and belt clip. If you are looking for a radio system that covers only small areas without the need for a repeater, the TK-3701D is an ideal choice.

The TK-3701D comes with a high-capacity Li-ion battery to deliver long hours of operation. The ability to keep going with no battery replacement means better reliability even in harsh working environments. Besides the supplied Li-ion battery, optional rechargeable batteries and other accessories that can be used with the TK-3701D are available.

KEY FEATURES

  • EU power supply and UK adaptor
  • 1 License-free analogue radio
  • Digital and Analogue
  • 48 Channels pre-programmed with the 16 Analogue PMR446 Frequencies plus 32 dPMR446 Digital Frequencies
  • Supplied with KSC-35ST Single Rapid charger, AC Adapter, KNB-45L Li-ion Battery Pack, KBH-14 Belt Clip and User Manual (English, Spanish, German, French, Dutch, Italian, Turkish, Greek & Portuguese)
Show moreShow less

Additional Information

Features:

  • UHF dPMR Digital and FM PMR446 Transceiver
  • Dual mode Analogue/Digital – User Selectable
    • 3 zones, 16ch per zone
    • 48ch, 16 analogue & 32 digital
  • Industry-standard digital AMBE2+ Vocoder
  • Selectable 7-colour LED
  • Second PTT allowing interoperability between PMR446 and dPMR446
  • Extended range and improved RFI performance
  • No license required
  • Adjustable Microphone gain
  • Voice Announcement
  • Scrambler
  • VOX/Semi-VOX (headset required)
  • Button Lock
  • Built-in VOX
  • CTCSS/DQT Signalling Tones
  • Scanning functions
  • Electronic Serial Number (ESN)
  • Clear Sound with Voice Compander function
  • IP54, IP55 and US-MIL-STD 810 C/D/E/F/G

Radio Licensing Information

Radio licensing: A guide to licensed and licence-free radios

What is a radio licence and do I need one?

There are two types of two-way radios, licensed radios and licence-free radios (PMR446).
Licensed radios require a dedicated frequency which ensures that only those on that frequency can hear transmissions. In order to access a dedicated frequency, a radio licence granted by Comreg is required by law. Licences are based on the quantity of equipment to be licensed.

The cost is €22 per piece of equipment plus a fixed charge of €22 for the duration of the licence. (e.g. 4 walkie talkies + 2 radio mics = 6 units +1 Fixed Charge = 7 x €22 = €154).

Licence-free radios (also called PMR446 radios) operate on the PMR446 radio frequency, they can be used by anyone within the UK and EU and as the title suggests they need no radio licence.

Licensed radios

Licensed radios are usually more expensive than licence-free models, but have a larger power output (of up to 5 watts for handheld radios) and so offer increased range and coverage.
For example a primary school would typically find coverage on licence-free equipment sufficient whereas licenced equipment would be better suited to a secondary school, college or university.

In addition, a licence will offer increased security of transmissions through better monitoring of frequencies, especially if the licence is specific to your site.

Licenced radios are generally more robust, with clearer audio quality and the conversation more secure. Licensed radios also offer much more functionality than license-free radios, you can make group callssend text messages and dial up individual users.

More about your Comreg licence

In order to obtain your licence, an application to Comreg has to be made. We are more than happy to apply on your behalf and offer a managed service in order to maintain your Comreg licence throughout your radio project. Or if you wish to make an application yourself, please feel free to ask us any questions along the way as we have vast experience in completing these forms and can go through it with you over the telephone. The application process is usually complete within 10-15 working days.

You can find out more by going to: https://www.comreg.ie/industry/radio-spectrum/licensing/search-licence-type/business-radio/

Licence-free radios

Non licensed radios are a cheaper alternative to licensed radios and can only have a power output of 0.5 watts giving them a fairly small range.

Licence-free radios can be used in the work place and for personal use, ideally where minimal coverage is needed, within small buildings where users are communicating in a close range.
Examples where these radios can be used effectively include smaller schools and construction siteswarehouses, hospitality venues and independent retail businesses.

For leisure they can be ideal for communicating between friends and family while camping and skiing, or if you are at a leisure park or hiking.

All PMR446 radios use the same eight channels. If there are a high number of users in a given area (cities and other built up areas) frequencies become extremely congested leading to interference on the channels, although usually there are multiple channels to select in order to find a clearer channel.
