Description

IC-F29SR Brochure


Product Description

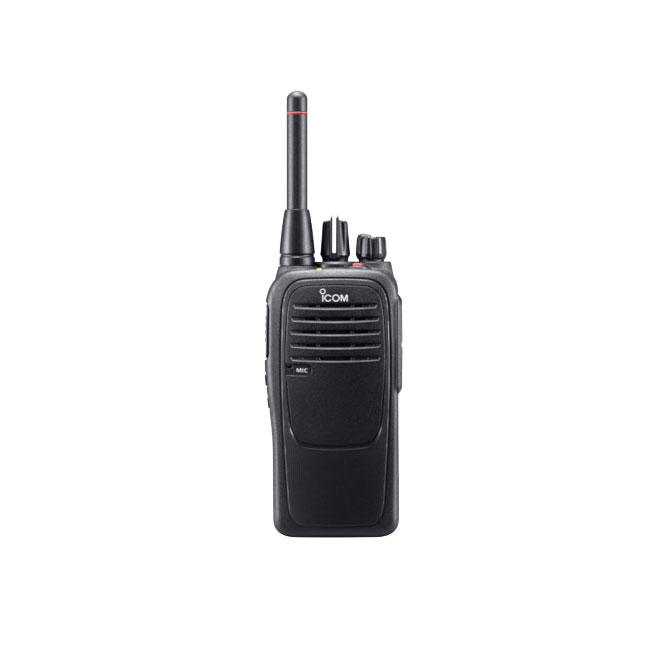

The IC-F29SR is the latest professional Licence Free Two Way Radio from Icom and retains the simplicity, functionality and build that made its predecessors so popular. The IC-F29SR is based on Icom’s new family of professional two way radios called the IC-F1000/F2000 series, which features a slim, compact body whilst retaining a robust, resistant to water and dust IP67 protection rating.

Compact & Slim, IP67 Waterproof, Tough & Rugged
The IC-F29SR is based on Icom’s new family of professional two way radios called the IC-F1000/F2000 series, which features a slim, compact body whilst retaining a robust, resistant to water and dust IP67 protection rating.

Easy to Use Professional Licence Free Radio
There are just three controls: transmit button, volume control and 16 position rotary channel selector. This simple interface makes it ideal for high turnover environments and shift work where the radio is often passed from person to person.

Loud, Clear Audio
The large 36mm speaker of the radio provides clear commanded 800 mW* audio to a radio operator working in noisy environments.
* Typical with internal speaker.

Call-Ring
The Call-Ring function can be used to call receivers with a ringer tone. Ten different ring patterns can be selected.

Answer Back
The Smart-Ring function checks whether the receiver is in communication range with a ringer sound.

Private Conversation
The built-in inversion voice scrambler provides private conversation. Up to 16 codes are selectable.

21 Hours Operation
The supplied Li-Ion battery pack, BP-279, provides up to 21 hours of operating time. The supplied rapid charger BC-213 charges the BP-279 in 2.5 hours.

Group Call
The user programmable CTCSS and DTCS codes can be used for group call. You will only send a call to specified group members using the same tone and same channel.

Show moreShow less

Additional Information

Other Features
• Low battery alert
• Time-out-timer function
• Monitor function
• Siren alarm function
• Surveillance function
• Key lock function
• Microphone gain level adjustment
• Power on scan function
• Three programmable buttons
• PC programmable

Radio Licensing Information

Radio licensing: A guide to licensed and licence-free radios

What is a radio licence and do I need one?

There are two types of two-way radios, licensed radios and licence-free radios (PMR446).
Licensed radios require a dedicated frequency which ensures that only those on that frequency can hear transmissions. In order to access a dedicated frequency, a radio licence granted by Comreg is required by law. Licences are based on the quantity of equipment to be licensed.

The cost is €22 per piece of equipment plus a fixed charge of €22 for the duration of the licence. (e.g. 4 walkie talkies + 2 radio mics = 6 units +1 Fixed Charge = 7 x €22 = €154).

Licence-free radios (also called PMR446 radios) operate on the PMR446 radio frequency, they can be used by anyone within the UK and EU and as the title suggests they need no radio licence.

Licensed radios

Licensed radios are usually more expensive than licence-free models, but have a larger power output (of up to 5 watts for handheld radios) and so offer increased range and coverage.
For example a primary school would typically find coverage on licence-free equipment sufficient whereas licenced equipment would be better suited to a secondary school, college or university.

In addition, a licence will offer increased security of transmissions through better monitoring of frequencies, especially if the licence is specific to your site.

Licenced radios are generally more robust, with clearer audio quality and the conversation more secure. Licensed radios also offer much more functionality than license-free radios, you can make group callssend text messages and dial up individual users.

More about your Comreg licence

In order to obtain your licence, an application to Comreg has to be made. We are more than happy to apply on your behalf and offer a managed service in order to maintain your Comreg licence throughout your radio project. Or if you wish to make an application yourself, please feel free to ask us any questions along the way as we have vast experience in completing these forms and can go through it with you over the telephone. The application process is usually complete within 10-15 working days.

You can find out more by going to: https://www.comreg.ie/industry/radio-spectrum/licensing/search-licence-type/business-radio/

Licence-free radios

Non licensed radios are a cheaper alternative to licensed radios and can only have a power output of 0.5 watts giving them a fairly small range.

Licence-free radios can be used in the work place and for personal use, ideally where minimal coverage is needed, within small buildings where users are communicating in a close range.
Examples where these radios can be used effectively include smaller schools and construction siteswarehouses, hospitality venues and independent retail businesses.

For leisure they can be ideal for communicating between friends and family while camping and skiing, or if you are at a leisure park or hiking.

All PMR446 radios use the same eight channels. If there are a high number of users in a given area (cities and other built up areas) frequencies become extremely congested leading to interference on the channels, although usually there are multiple channels to select in order to find a clearer channel.
