Description


TK-3501 Brochure


Product Description

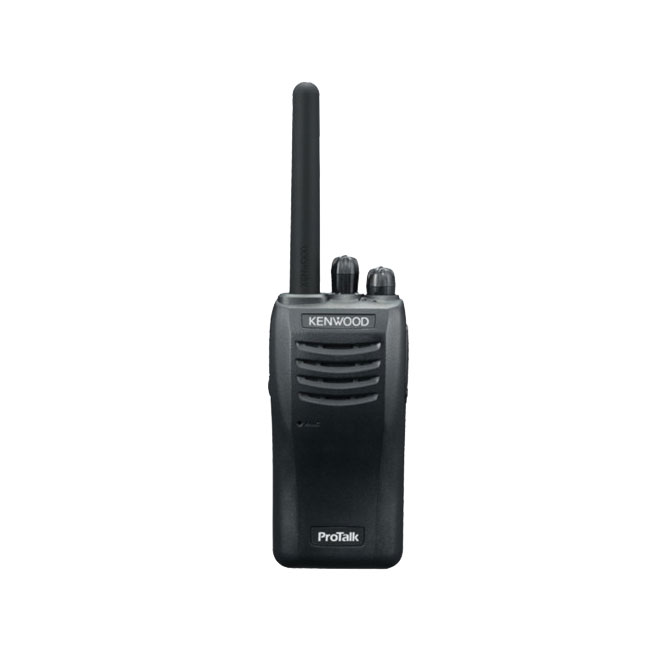

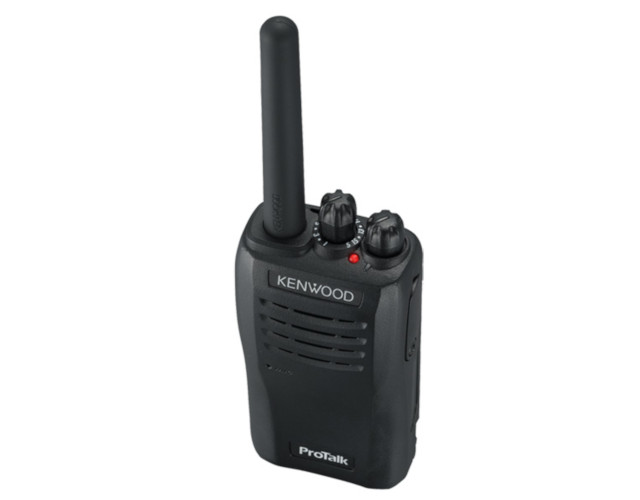

The Kenwood TK-3501 Analogue ProTalk 446 radio is a brand new hand-portable replacing the popular TK-3301. With newly-enhanced features it is ideal for professionals requiring a user-friendly license-free radio communications solution.

This radio is ultra-lightweight, weighing just 210g with an IP rating of IP54 for water and dust resistance as well as military standard 810 C, D, E, F & G environmental standards.

It benefits from extended range to 9km* due to a precision tuned RX section and an optimised antenna for wider coverage, and delivers 1.5W audio output thanks to a large speaker and powerful BTL amplifier.

The TK-3501 can be programmed by the user with no need for additional software, they can change the channel frequency, QT tone or DQT code with ease.

Other features include a single priority scan to find available channels, built-in VOX (hands-free), and 10 calling alert tones amongst others.

*The range of a PMR446 radio varies a lot depending on where you use it. The maximum range given by manufacturers is based on ideal conditions, such as from hilltop to hilltop, but the range you actually get will be much less if you are in a built-up area. Trees, walls, hills and even the weather can affect the range of your radio.

KEY FEATURES

  • EU power supply and UK adaptor
  • 1 License-free analogue radio
  • IP54 dust and water resistant and Military standard 810 C, D, E, F & G
  • Frequency 446 MHz, 16 channels
  • Lightweight (210g) and compact
  • Powerful BTL amplifier and speaker
Show moreShow less

Additional Information

Features:

  • 1 License-free radios
  • Successor to the TK-3301E
  • IP54 dust and water resistant
  • Military standard 810 C, D, E, F & G
  • User-friendly
  • Kenwood quality and durability
  • Built in VOX
  • 16 channels
  • Scanning functions
  • Adjustable Microphone gain (by FPU)
  • ‘All reset’ function
  • Compact
  • Audio volume with 1.5W BTL amplifier
  • User programmable
  • Extended range – 9km*
  • Complies with ETSI standards
  • Frequency range 446 – 446.1 MHz
  • 1130 mAh Li-Ion rechargeable battery
  • Battery life (battery save on) 20 hours
  • Battery life (battery save off) 14 hours
  • -20°C to +60°C
  • Weight: 210g
  • Size: 54 x 117 x 25.5mm

Radio Licensing Information

Radio licensing: A guide to licensed and licence-free radios

What is a radio licence and do I need one?

There are two types of two-way radios, licensed radios and licence-free radios (PMR446).
Licensed radios require a dedicated frequency which ensures that only those on that frequency can hear transmissions. In order to access a dedicated frequency, a radio licence granted by Comreg is required by law. Licences are based on the quantity of equipment to be licensed.

The cost is €22 per piece of equipment plus a fixed charge of €22 for the duration of the licence. (e.g. 4 walkie talkies + 2 radio mics = 6 units +1 Fixed Charge = 7 x €22 = €154).

Licence-free radios (also called PMR446 radios) operate on the PMR446 radio frequency, they can be used by anyone within the UK and EU and as the title suggests they need no radio licence.

Licensed radios

Licensed radios are usually more expensive than licence-free models, but have a larger power output (of up to 5 watts for handheld radios) and so offer increased range and coverage.
For example a primary school would typically find coverage on licence-free equipment sufficient whereas licenced equipment would be better suited to a secondary school, college or university.

In addition, a licence will offer increased security of transmissions through better monitoring of frequencies, especially if the licence is specific to your site.

Licenced radios are generally more robust, with clearer audio quality and the conversation more secure. Licensed radios also offer much more functionality than license-free radios, you can make group callssend text messages and dial up individual users.

More about your Comreg licence

In order to obtain your licence, an application to Comreg has to be made. We are more than happy to apply on your behalf and offer a managed service in order to maintain your Comreg licence throughout your radio project. Or if you wish to make an application yourself, please feel free to ask us any questions along the way as we have vast experience in completing these forms and can go through it with you over the telephone. The application process is usually complete within 10-15 working days.

You can find out more by going to: https://www.comreg.ie/industry/radio-spectrum/licensing/search-licence-type/business-radio/

Licence-free radios

Non licensed radios are a cheaper alternative to licensed radios and can only have a power output of 0.5 watts giving them a fairly small range.

Licence-free radios can be used in the work place and for personal use, ideally where minimal coverage is needed, within small buildings where users are communicating in a close range.
Examples where these radios can be used effectively include smaller schools and construction siteswarehouses, hospitality venues and independent retail businesses.

For leisure they can be ideal for communicating between friends and family while camping and skiing, or if you are at a leisure park or hiking.

All PMR446 radios use the same eight channels. If there are a high number of users in a given area (cities and other built up areas) frequencies become extremely congested leading to interference on the channels, although usually there are multiple channels to select in order to find a clearer channel.
